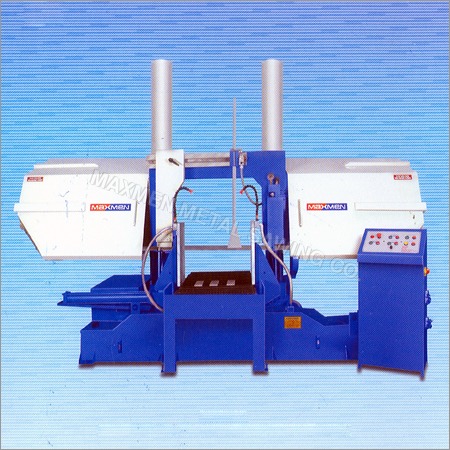

Fully Automatic Bandsaw Machine

Fully Automatic Bandsaw Machine
Fully Automatic Bandsaw Machine
Product Code : SAHDCBM-650DC
Brand Name : MAXMEN METAL SAWING CO
Product Description

Fully Automatic Bandsaw Machine

We are as the foremost manufacturer, exporter and supplier of Fully Automatic Bandsaw Machine. This machine is manufactured under the strict guidance of our adept professionals using premium quality components and pioneering technology in tune with international quality standards. The provided machine is extensively used for cutting and shaping of metals sheets, bars and other industrial products. In addition, our offered Fully Automatic Bandsaw Machine can be availed by our clients at reasonable prices.

Features:

  • Optimum performance
  • Enhanced service life
  • Low maintenance
  • High functionality
  • Improved Heavy Duty Worm reduction Gear box
  • Swinging/Oscillating Movement of Arm
  • Dynamically balanced Driver & Driven wheel
  • Long life and Best Performance of the blade
  • Less Power consumption due to continuous cutting
  • Sharp cutting accuracy
  • Automatic shut off after completion of cutting
  • Each parts of the machine are replaceable & repairable
  • Efficient self centering vice for job clamping
  • Separate coolant tank to avoid wastage of cutting oil & water
  • Chip collection tray to avoid mixing of water & chips
  • Extra long vice plate to minimize length of end piece.

Standard Accessories

  • Drive motor & Coolant Pump
  • Contractor & push buttons
  • Worm & Motor pulley with V-belt
  • Chip collection tray
  • Job stopper assembly
  • Coolant tank with pipe & fittings
  • 1 piece of carbon steel Bandsaw blade
  • Oil filled worm reduction gear box
  • Oil filled adjustable Hydraulic jumper
  • Chip removal wire brush

Extra Accessories

  • Bimetal/Carbon steel Bandsaw blade
  • Job roller stand (Motorized or Non-Motorized)
  • Swivel vice for angular cutting
  • Cutting feed controller with auto lifting attachment (Hydraulic or Electro-mechanical)
  • Variable frequency drive for Blade-speed
  • Chip removal wire brush.

Technical Specifications


Model

LX-530 DC
LX-530 DCA

LX-650 DC
LX-650 DCA

LX-800 DC

LX-1000 DC

LX-1250 DC

LX-1500 DC

Cutting Capacity
Round & Square (mm)

530

650

800

1000

1250

1500

Blade Dimensions(mm)

6900x54x1.6

8000x67x1.6

8800x67x1.6

12300x67x1.6

13200x80x1.6

13200x80x1.6

Power Req.
KW/H.P, 440 V AC, 50 Hz
3 Phase

Saw Drive

5.5/7.5
1000 RPM

7.5/10
1000 RPM

9.3/12.5
1000 RPM

9.3/12.5
1000 RPM

9.3/12.5
1000 RPM

9.3/12.5
1000 RPM

Hydraulic Drive

0.75/1.0
1440 RPM

1.1/1.5
1440 RPM

1.1/1.5
1440 RPM

1.1/1.5
1440 RPM

1.1/1.5
1440 RPM

1.1/1.5
1440 RPM

Coolant Pump

0.12/0.16
2800 RPM

0.12/0.16
2800 RPM

0.12/0.16
2800 RPM

0.12/0.16
2800 RPM

0.12/0.16
2800 RPM

0.12/0.16
2800 RPM

Appx. Dimensions (LxWxH) mtr

DC

3.3x1.4x2.3

4.0x1.5x2.5

4.6x1.7x2.9

5.0x1.9x3.5

5.0x2.0x4.0

6.0x2.0x4.0

DCA







Approx. Weight (kg)

DC

3500

5000

6000

12000

14000

15000

DCA
